05-25-2006, 11:49 PM
|
 |
Lead foot Stecher
|
|
Join Date: Jan 2006
Location: Minnesota
Posts: 4,774
|
|
Dash / Gauge Cluster Pics
I have always been a sucker for a cars gauges as I just love seeing nicely laid our clusters that give you all you need to know.
So my thought with this thread is I want to see what everyone's dash looks like. I'll start with mine and also Rob's Z4 as he was over at my house tonight for a meeting and greet between the cars.
|
05-26-2006, 03:31 PM
|
 |
Official Trackpedia Greeter
|
|
Join Date: Jan 2006
Location: New Bern, North Carolina
Posts: 3,027
|
|
Last edited by Stack; 05-26-2006 at 06:21 PM.
|
06-23-2006, 10:07 PM
|
|
Green Group
|
|
Join Date: Jan 2006
Posts: 68
|
|
Not quite complete yet, but pretty close. Still have to finish the wiring, put in a fuel gauge and lap timer display.
|
06-24-2006, 12:59 AM
|
|
Lead foot Stecher
|
|
Join Date: Jan 2006
Location: Minnesota
Posts: 4,774
|
|
Ohhh boy that baby is sweet zslinger! Is the electronic setup and dash Motec?
|
06-24-2006, 08:50 AM
|
|
Green Group
|
|
Join Date: Jan 2006
Posts: 68
|
|
Quote:
|
Originally Posted by jstecher
Ohhh boy that baby is sweet zslinger! Is the electronic setup and dash Motec?
|
Thanks! No its not a Motec, I wish though. The cluster in the center is the factory GSXR1000 tach/gauge, the gauges to the right are Nordskog oil press/temp, h20 temp and a/f ratio. The unit on the left (partially blocked) is a Veypor2 datalogger, laptimer and shift light. It worked out kind of nice, I have an oil temp gauge before and after the cooler, the one on the factory gauge and the aftermarket one. That way I can see how much cooling is going on.
Last edited by zslinger; 06-24-2006 at 09:52 AM.
|
07-13-2006, 05:45 PM
|
 |
Administrator
|
|
Join Date: May 2006
Location: Rochester, NY
Posts: 3,836
|
|

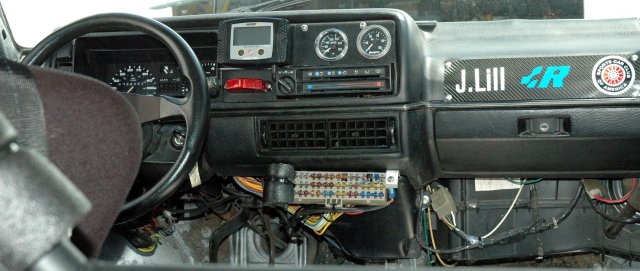

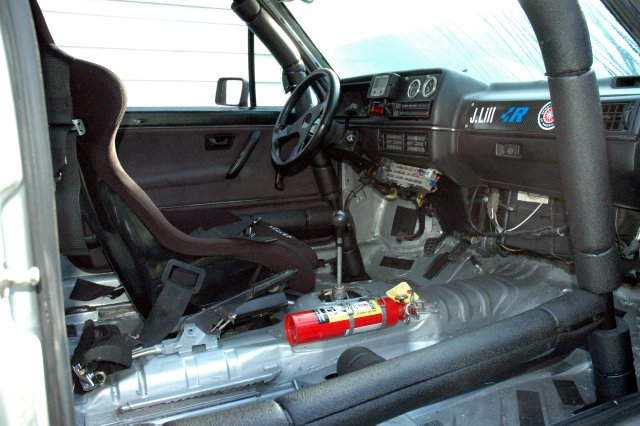

my very basic VW ITB reworked dash
Factory gauges + mechanical OP and WT. Blinding LED OP light. BlindApex IT Display.
Odd photo angle, things not that crooked!
Last edited by JimLill; 07-14-2006 at 08:04 AM.
|
07-16-2006, 02:02 PM
|
 |
Yellow Group
|
|
Join Date: Jan 2006
Posts: 359
|
|
Tach in the center, just the way it should be
|
08-31-2006, 05:54 AM
|
 |
Red Group
|
|
Join Date: Jan 2006
Location: Yourope
Posts: 647
|
|
Quote:
Originally Posted by trackrat
Tach in the center, just the way it should be |
Sweet! You even dialed the Tach a quarter to the left. Now we're talking..
__________________
Magnus
|
08-31-2006, 07:25 PM
|
|
Yellow Group
|
|
Join Date: Jan 2006
Posts: 359
|
|
Quote:
Originally Posted by Magnus
Sweet! You even dialed the Tach a quarter to the left. Now we're talking.. |
Make it a lot easier to read the tach with just a quick glance. Needle pointing up, time to shift.
|
03-14-2007, 01:58 AM
|
|
Green Group
|
|
Join Date: Mar 2007
Posts: 43
|
|
|
